LM60UU 60mm Sealed Linear Motion Ball Bushing Bearing LM Series 60x90x110mm

Description



Product Description

Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

Features:
Linear bearing is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.

Types:
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.



Models:
“LM” metric standard type linear bearing

“LME” inch standard type linear bearing

“UU” rubber seals on the both sides of the long type linear bearing

“OP” open type linear bearing

“AJ” adjustment type linear bearing

*LM…UU: LM…(sylinder), LM…OP(open type), LM…AJ(clearance adustable)

*LME…UU: LME…(sylinder), LME…OP(open type), LME…AJ(clearance adustable), LM…UU & LME…UU: Long type

*KH: High-precision miniature bearing

Product Detail

Product Name	3D Printer High Speed Linear Motion Bearing LM60UU Bearing
Model Number	LM60UU
Inner Diameter	60MM
Outer Diameter	90mm
Breadth	100mm
Product Material	Chrome steel
Precision Grade	P0 P6 P5 P4 P2 are all available

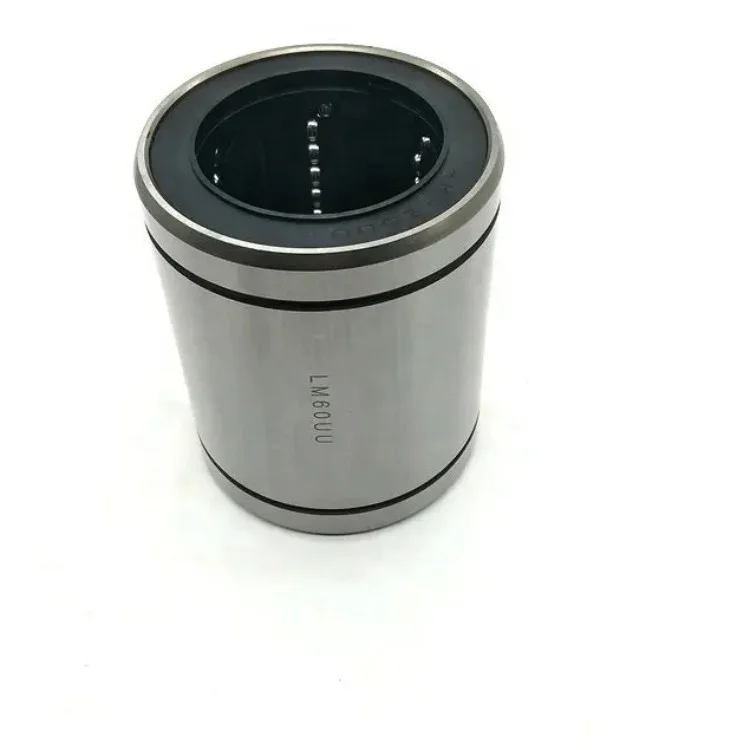

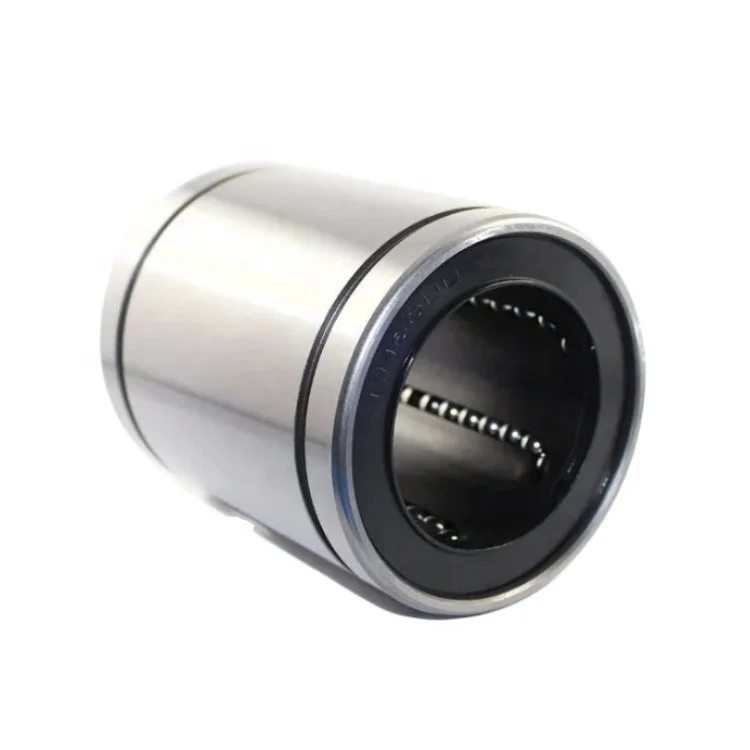

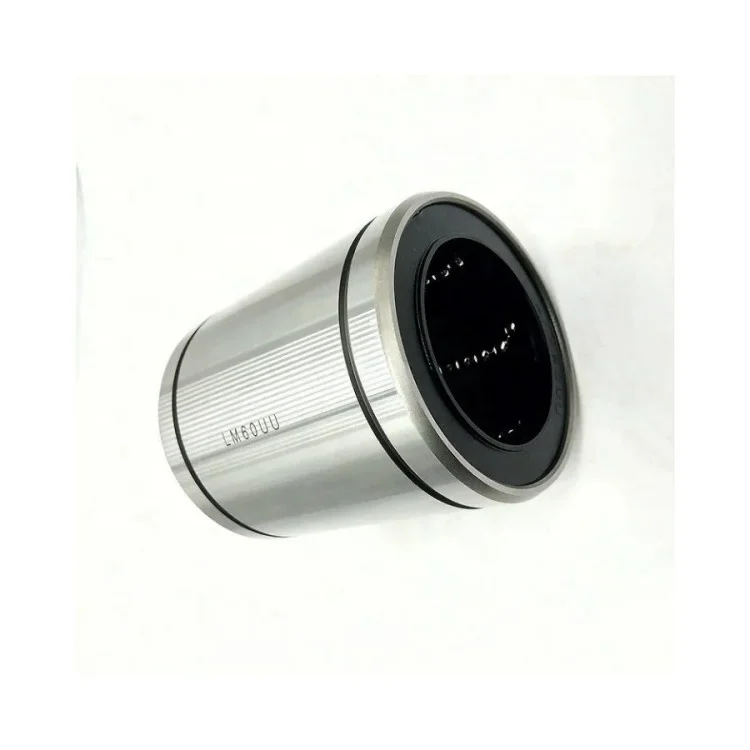

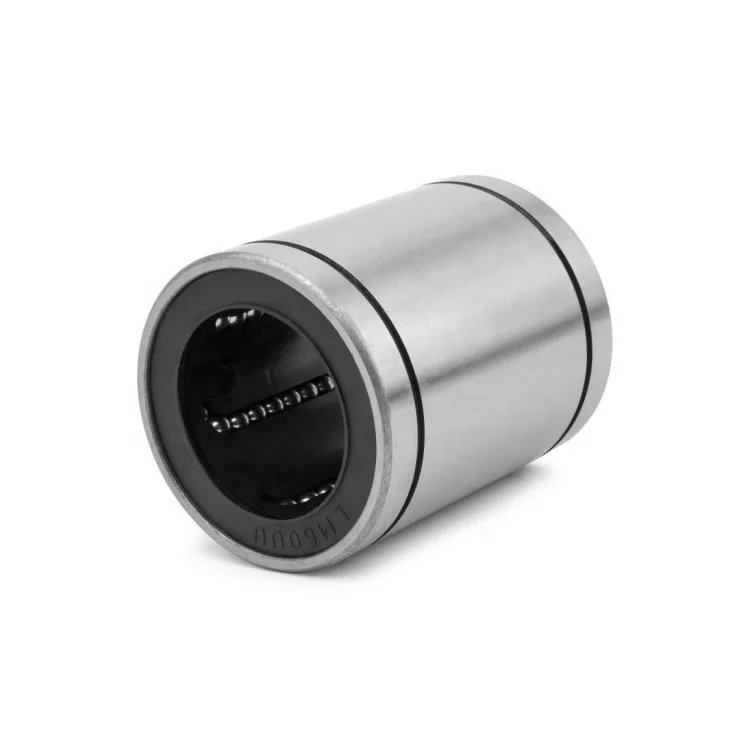

Products Show

Related Model

MODEL NO.	NUMBER OF BALL ROWS	MAIN DIMENSIONS										BASIC LOAD RATING		WEIGHT g
		INNER DIAMETER		OUTER DIAMETER		LENGTH		OUTER LOCKING GROOVE			W	c(kgf)	Co(kgf)
		dr	TOLERANCE	D	TOLERANCE	L	TOLERANCE	B	TOLERANCE	D1
LM3	4	3	0   -0.008	7	0   -0.009	10	0   -0.12
LM4	4	4		8		12						9	13	3
LM5	4	5		10		15		10.2	0   -0.20	9.6	1.1	17	21	4
LM6UU	4	6	0   -0.009	12	0   -0.011	17	0   -0.20	13.5		11.5	1.1	21	27	6
LM8S	4	8		15		19		11.5		14.3	1.1	18	23	9
LM8UU	4	8		15		24		17.5		14.3	1.1	27	41	14
LM10UU	4	10		19	0   -0.013	29		22		18	1.3	38	56	28
LM12UU	4	12		21		30		23		20	1.3	42	61	32
LM13UU	4	13		23		32		23		22	1.3	52	79	38
LM16UU	5	16		28		37		26.5		27	1.6	79	120	74
LM20UU	5	20	0   -0.010	32	0   -0.016	42		30.5		30.5	1.6	88	140	80
LM25UU	6	25		40		59	0   -0.30	41	0   -0.30	38	1.85	100	160	206
LM30UU	6	30		45		64		44.5		43	1.85	160	280	240
LM35UU	6	35	0   -0.012	52	0   -0.019	70		49.5		49	2.1	170	320	370
LM40UU	6	40		60		80		60.5		57	2.1	220	410	589
LM50UU	6	50		80		100		74		76.5	2.6	390	810	1480
LM60UU	6	60	0   -0.015	90	0   -0.022	110		85		86.5	3.15	480	1020	1750
